  • SP-22FL 160kg capacity Bolt Mount Solid Steel Ball Transfer Roller Unit

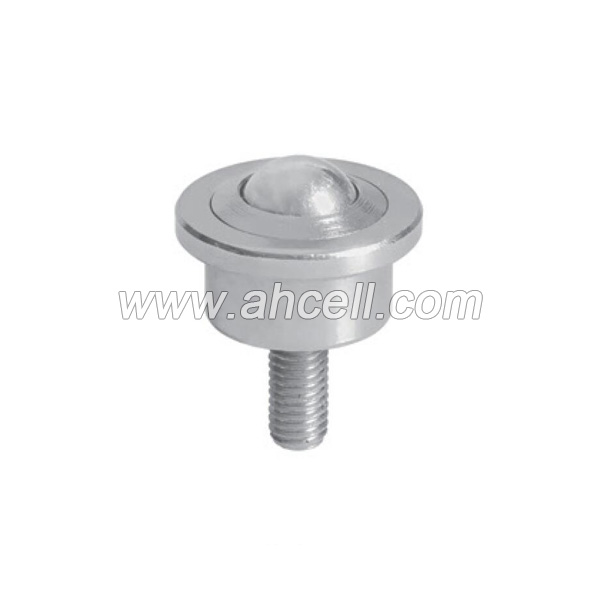

SP-22FL 160kg capacity Bolt Mount Solid Steel Ball Transfer Roller Unit

SP-22FL 160kg capacity Bolt Mount Solid Steel Ball Transfer Roller Unit

  • Main Ball Size: 22mm
  • Suggest Dynamic Load: 140kg
  • Max. Dynamic Capacity: 160kg
  • Net Weight: 250g

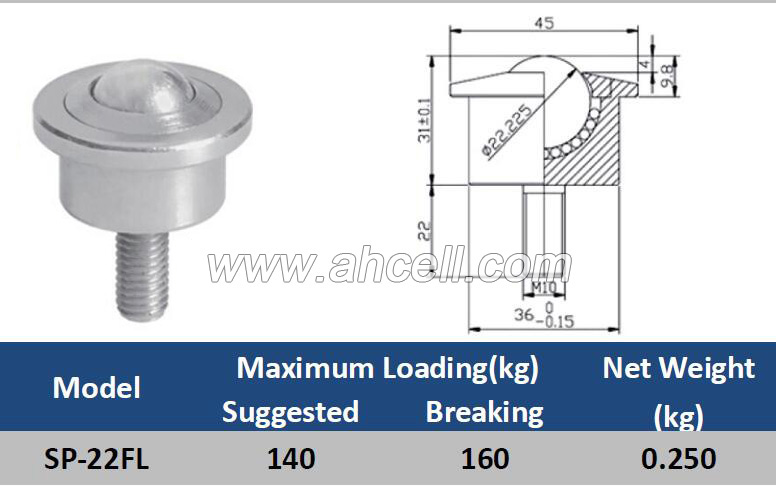

  • Product description: 22.225 - 36 - 45 - 4 - 9.8 - 31 - 22 - M10 bearing SP-22FL Thread Rod Ball Caster,Bolt Mount Ball Roller,Solid Steel Machined Ball Transfer Unit
  • INQUIRY

22mm Ball, Bolt Mount Ball Transfer Uni


Model

Maximum Loading(kg)

Net Weight

(kg)

Suggested

Breaking

SP-22FL

140

160

0.250

SP-22FL Bolt Ball Caster Roller Ball Transfer unit



A Leading Ball Transfer Units Manufacturer in China


22.225 - 36 - 45 - 4 - 9.8 - 31 - 22 - M10 bearing
