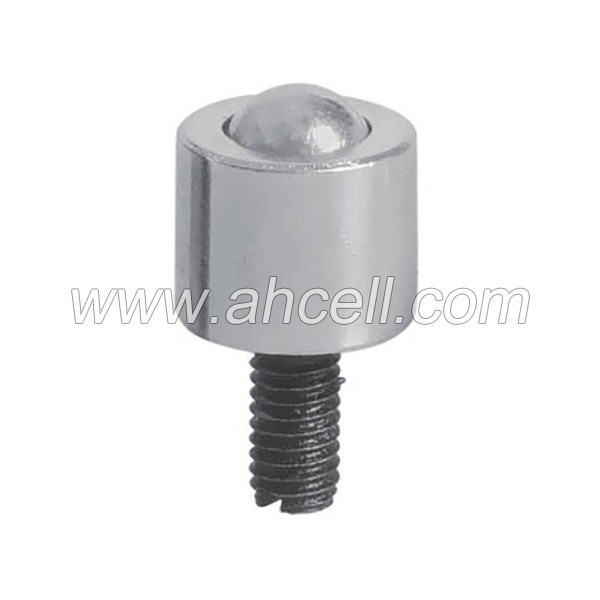

BCHN BCHF Lock Nut Ball Transfer Unit MISUMI Stud Type Ball Roller

BCHN BCHF Lock Nut Ball Transfer Unit MISUMI Stud Type Ball Roller

  • Models: D-6H, D-9H, D-12H, D-15H, D-19H
  • Type: BCHN BHF BCHG BCHO BCHT
  • Material: Carbon Steel, Stainless Steel
  • Ball Size: 6 9 12 15 16 19 24 25 31 32 42
  • Product description: BCHN Thread Rod End Bolt Mount Ball Caster, Lock Nut Ball Transfer Unit MISUMI Stud Type Ball Roller,6 9 12 15 16 19 24 25 31 32 42 Ball
  • INQUIRY


BCHN BCHF Thread Rod Bolt Lock Nut Misumi Ball Transfer Units


BCHN Misumi Ball Rollers

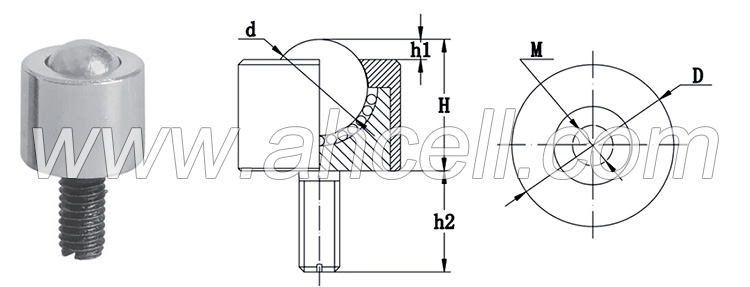

Model

d

D

H

h1

h2

M

Maximum Loading(kg)

Net weight

Suggested

Breaking

(kg)

D-6H

6.35(1/4”)

12

9.0±0.1

1.5

12.0

M6

5

6

0.035

D-9H

9.53(3/8”)

15

15.0±0.1

1.5

12.0

M6

7

8

0.042

D-12H

12.70(1/2”)

20

18.0±0.1

3.0

12.0

M8

8

10

0.055

D-15H

15.88(5/8”)

24

20.5±0.1

4.0

12.0

M8

15

20

0.120

D-19H

19.05(3/4”)

32

26.0±0.1

4.0

12.0

M8

40

50

0.250




MISUMI Model Number:

Type [ M ]Material
(1) Body (2) Spacer (3) Main Ball (4) Sub Balls
BCHN 304 Stainless Steel 440C Stainless Steel HRC55~
BCHF


Part Number L1 H M L d B (ℓ) Allowable Load N
(kgf)
Type D1
BCHN 12 1.5 6.5 6 15 5.56 3 3.5 41 (4.2)
16 2.5 9.5 8.73 55 (5.6)
19 3.5 11.5 8 20 10.32 4 5 62 (6.3)
25 5.3 14.7 15.87 343 (35)
31 6.3 18.7 10 25 19.05 5 6 412 (42)


Type [ M ]Material
①Main Ball ②Cover ③Bearing ④Sub Ball ⑤Threaded Section
BCHG 52100 Bearing Steel 1018 Carbon Steel SCM415 Alloy Steel (JIS) 52100 Bearing Steel SCM415 Alloy Steel (JIS)
BCHO
BCHT Low Carbon SteelD 4137 Alloy Steel


Part Number D D1 d h1 h2 F1 Allowable Load N(kgf)
Type No.
BCHG 24 24 - 15.875 20.5 12 4 196.1 (20)
BCHO 32 32 - 19.05 26 20 4 490.3 (50)
BCHT 42 42 31.3 25.40 42 21 7.4 784.5 (80)
